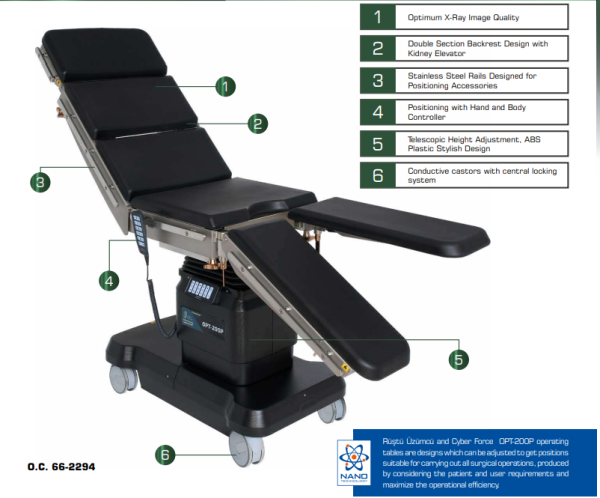

Description

Electrical Movements:

• Height
• Back Rest
• Trendelenburg
• Reverse Trendelenburg
• Lateral Tilt
• Sliding

Mechanical Movements:

• Head Rest
• Leg Rests, Up / Down
• Leg Rests, Right / Left
• Kidney Surgery Position
• Central Locking

Sizes:

• Width x Length : 615×2130 mm
• Height (min) : 800 mm
• Height (max) : 1200 mm
• Max & Min dimensions are measured with mattress.

Angles:

• Sliding Movement : 300 mm
• Lateral Tilt Movement : +20°/- 20°
• Back Rest Movement : +90°/- 40°
• Trendelenburg : +25°
• Reverse Trendelenburg : -25°
• Leg Rest Up / Down : +65°/-90°
• Leg Rest Parallel Movement : 80°
• Head Rest Movement : +30° / – 60°
• Kidney Surgery Position : 250°
• Flex / Reflex Position : +220° / -90°
